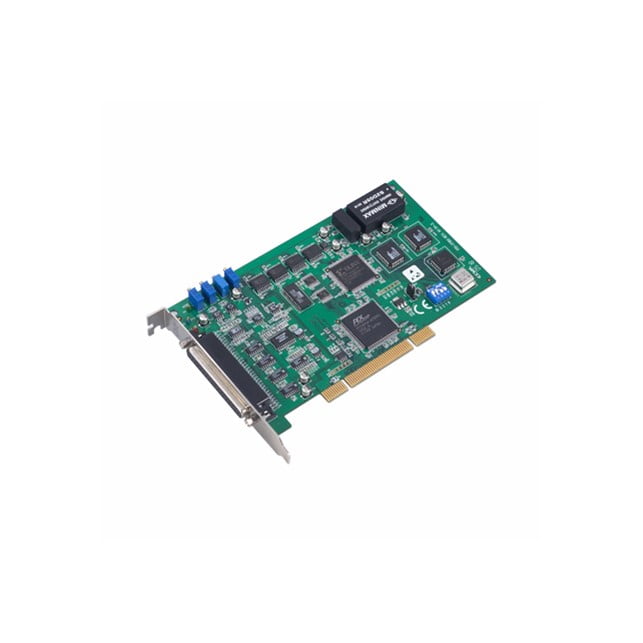

Advantech 500 kS/s, 12-bit, 32-ch Isolated Analog Input Universal PCI Card (PCI-1715U-AE)
- 2,500 VDC isolation protection
- 32-ch single-ended or 16-ch differential or a combination of analog input
- 12-bit resolution for A/D conversion
- Programmable gain for each input channel
- Onboard FIFO memory: 1,024 samples
- Software, internal or external pacer sampling modes supported
Deskripsi
| Category | Attribute | Value |
| Analog Input | Channels | 32 |
| Input Range | ±0.625 V, ±1.25 V, ±2.5 V, ±5 V, ±10 V, 0~1.25 V, 0~2.5 V, 0~5 V, 0~10 V | |
| Isolation Protection | 2,500 VDC | |
| Resolution(Bits) | 12-bit | |
| Sampling Rates(S/s) | 500 KS/s (sum) | |
| General | Programming Language | C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt |
