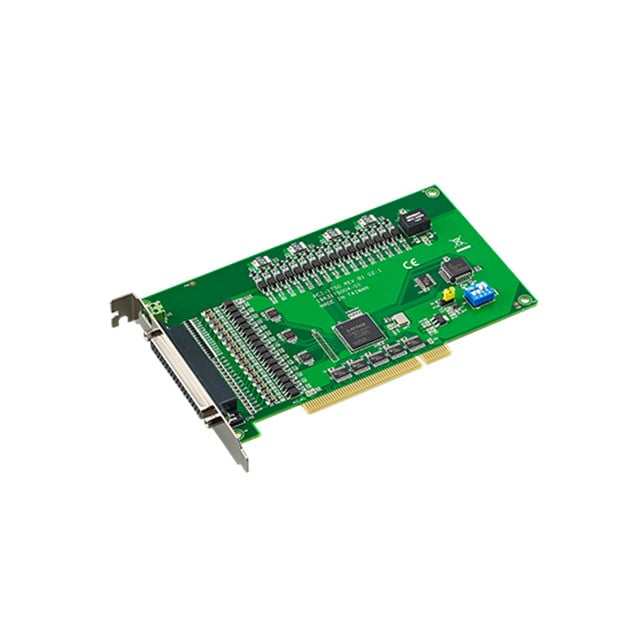

Advantech CIRCUIT BOARD, 32ch Isolated Digital I/O Card w/Counter (PCI-1750-BE)
- 16 isolated DI and 16 isolated DO channels
- High voltage isolation on all isolated channels (2,500 VDC)
- High sink current on isolated output channels (200 mA/channel)
- Supports dry contact or 5 ~ 50 VDC isolated inputs
- Interrupt handling capability
- Timer/counter interrupt capability
Deskripsi
| Category | Attribute | Value |
| General | Programming Language | C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt |
| Counter/Encoder Input | Channels | 1 |
| Counting Range | 16-bit | |
| Digital Input | Channels | 16 (Isolated) |
| Isolation Protection | 2,500 VDC | |
| Digital Output | Channels | 16 (Isolated) |
| Isolation Protection | 2,500 VDC |
