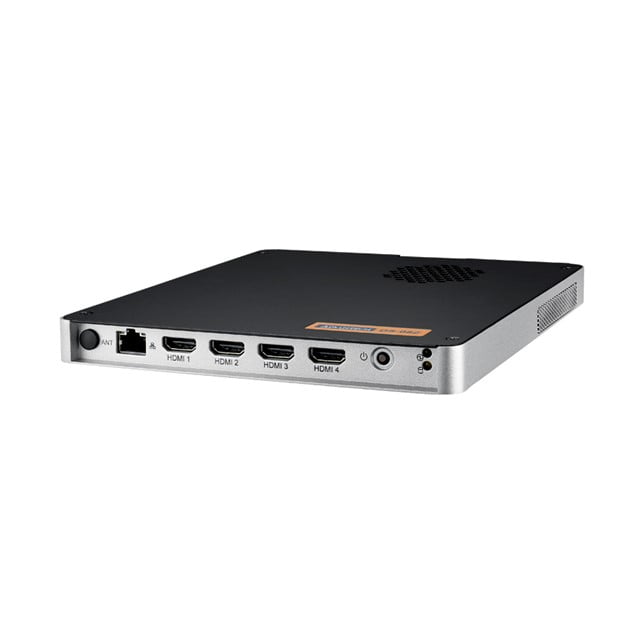

Advantech DS-082,AMD,R1606G,Barebones,3 Dis,Fan(25W) (DS-082GB-U6A1E)
Deskripsi
| Category | Attribute | Value |
| Display | HDMI | Support HDMI 2.0，up to 3840 x 2160 @ 60Hz |
| Display | Multiple Display | Four outputs |
| Memory | Max. Capacity | 32GB (16GB per SODIMM) |
| Memory | Technology | 2 x DDR4 260-pin SO-DIMM |
| Processor | BIOS | AMI UEFI 128 Mbit |
| Processor | CPU | AMD Ryzen™ Embedded R1606G processor |
| Storage | M.2 | M.2 2242 M Key |
| Environment | Operational Temperature | 0 ~ 40° C (32 ~ 104° F), w/o system fan w/ 0.7m/s airflow, 40° C @ 95% RH Non-Condensing |
| I/O Interface | Audio | 1x SPDIF/ Line-out (support Jack sense via OS setting); 1 x Mic-in |
| I/O Interface | LAN (RJ-45) | 1 |
| I/O Interface | Serial Port | 1 x RS-232 |
| I/O Interface | USB2.0 | 2 |
| I/O Interface | USB3.0 | 2 |
| Power Requirement | Management | ACPI 3.0 |
| Software Development Kit | Operating System | Windows 10 (64bit) |
| Software Development Kit | Signage Software | WISE-PaaS/RMM & WebAccess/IMM |
| Certification | EMC | CE, FCC Class B, CCC, BSMI |
| Certification | Safety Certifications | CB, UL, CCC, BSMI |
| Physical Characteristics | Dimensions(W x D x H) | 180 x 190 x 19 mm |
| Physical Characteristics | Weight | 0.87 kg (1.92 lb) |
Informasi Tambahan
| Brand |
Advantech |
|---|
