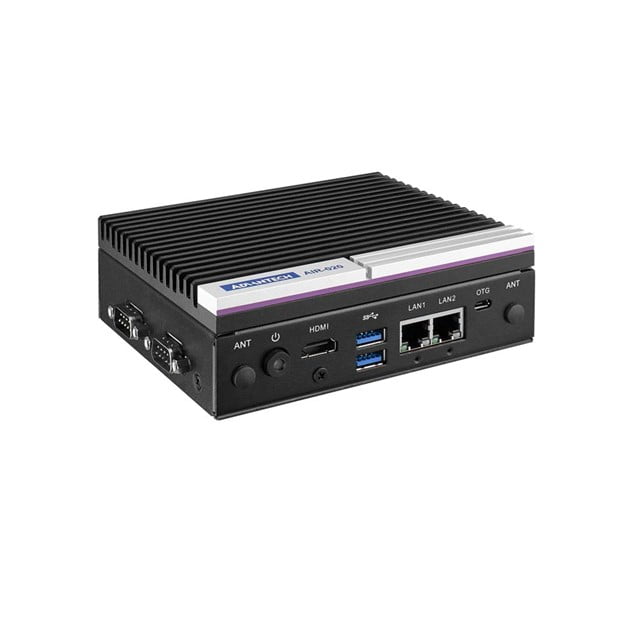

Advantech Edge AI NVIDIA TX2 NX inference system (AIR-020T-U0A1)

Deskripsi

Category	Attribute	Value
Display	HDMI	1
Display	Max. Resolution	3840 x 2160 @ 60Hz
I/O	CANBus	N/A
I/O	COM Port	1 (RS232/422/485)
I/O	Digital I/O	8bit
I/O	OTG USB	1 x Micro USB (for system recovery only)
I/O	USB	2 x USB 3.2 Type A, 1 x USB 3.2 Type C
Processor	AI Performance Reference	Up to 1.33 TFLOPS
Processor	CPU	CPU Denver 2 CPU and Cortex A57 Quad Core, Max. 2.0 GHz
Processor	Flash	16G eMMC
Processor	GPU	256 NVIDIA® CUDA® cores
Processor	Memory	4 GB LPDDR4
Storage	M.2	1 x M.2 2280 (M Key), 128GB built-in
Operating System	Linux	Ubuntu 18.04 LTS with JetPack 4.5.1 supported
Environment	Humidity	Operating: 40° C @ 95% relative humidity, non-condensing
Environment	Operating Temperature	-10 ~ 55 °C with 0.7 m/s air flow (non-throttling
Environment	Vibration	3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
Power	Input Voltage	12 ~ 24 VDC
Power	Power Type	AT / ATX
Ethernet	Connector	2 x RJ-45
Ethernet	Controller	Intel® i210AT, NVIDIA SoM
Ethernet	Speed	10/ 100/ 1000 Mbps
Expansion	Mini PCIe	1 x Full-size mPCIe with nano SIM holder
Certifications	EMC	CE, FCC class B
Certifications	Safety	CB, UL, CCC, BSMI
Software Support	Application	Edge AI Suite compatible
Physical Characteristics	Dimensions(W x D x H)	138 x 110 x 43.6 mm
Physical Characteristics	Mounting	Wall mount
Physical Characteristics	Total Height
Physical Characteristics	Weight	0.85 kg

Informasi Tambahan

Brand	Advantech
