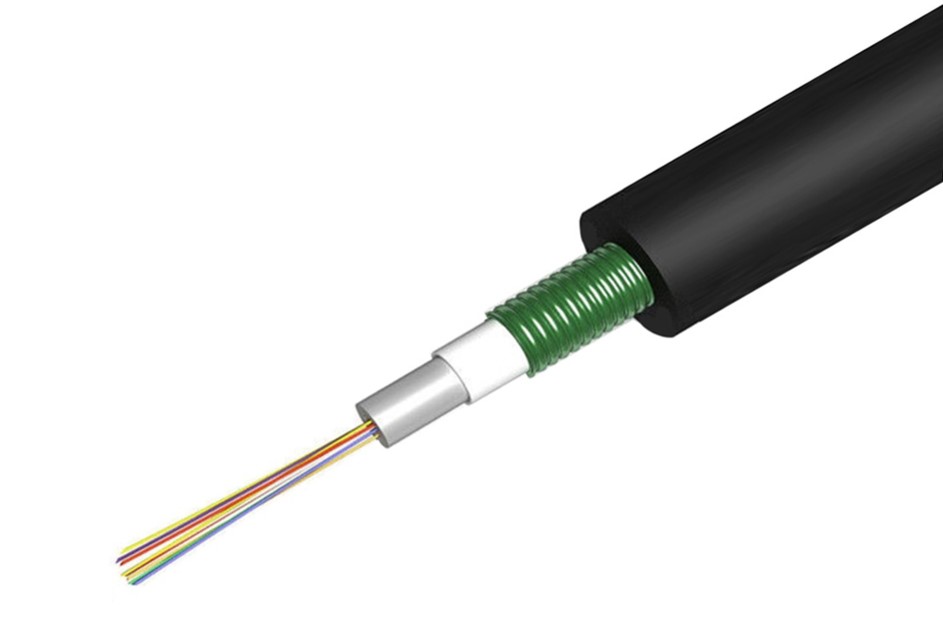

CommScope 760249705 | O-012-CA-5Y-M12BK/28G/093
Rp98.790
- Fiber OSP cable, PE, Gel-filled Central Tube, CST, 12 fiber, Multimode OM3
Deskripsi
Spesifikasi :
| Cable Type | Central loose tube |
| Construction Type | Armored |
| Subunit Type | Gel-filled |
| Jacket Marking | Feet |
| Fibers per Subunit, quantity | 12 |
| Total Fiber Count | 12 |
| Buffer Tube/Subunit Diameter | 2.8 mm | 0.110 in |
| Diameter Over Jacket | 9.1 mm | 0.358 in |
| Minimum Bend Radius, loaded | 182 mm | 7.165 in |
| Minimum Bend Radius, unloaded | 91 mm | 3.583 in |
| Tensile Load, long term, maximum | 890 N | 200.080 lbf |
| Tensile Load, short term, maximum | 2700 N | 606.984 lbf |
| Compression | 20 N/mm | 114.203 lb/in |
| Flex | 25 cycles |
| Fiber Type | OM3 |
| Water Penetration | 24 h |
| Temperature Cycle | -40 °C to +70 °C (-40 °F to +158 °F) |
| Cable weight | 92 kg/km | 61.821 lb/kft |
CommScope-760249705-product-specifications.pdf
