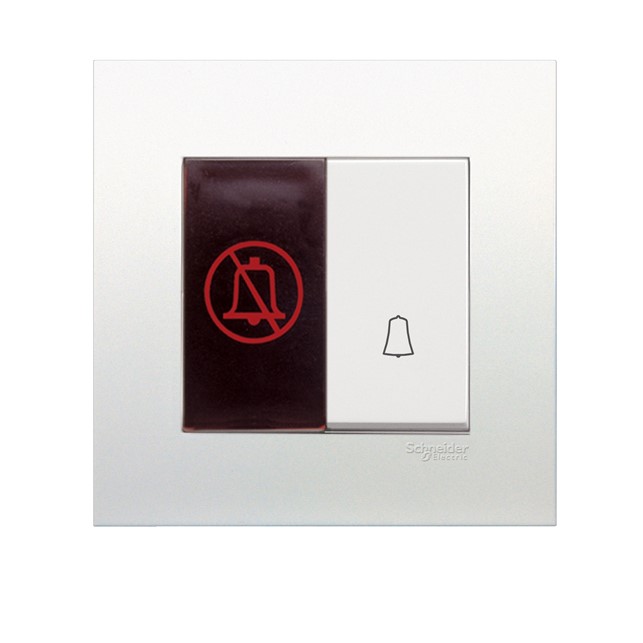

Schneider Vivace Do Not Disturb with Bell Press – 10A 250V 1 gang 1 way switch
Rp88.000
Deskripsi
Specifications
| Range | Vivace |
|---|---|
| Product or component type | Bell press switch |
| device short name | KB31 |
| Device application | Control |
| Additional switch application | Do not disturb |
| Switch function | 1-way |
| Device presentation | Complete mechanism |
|---|---|
| Actuator | Push-button |
| Pilot light | Indicator |
| Number of gangs | 1 gang |
| Colour tint | White |
| Material | Polycarbonate: grid plate Polycarbonate: surround Nylon: base |
| Projecting depth | 8 mm |
| device mounting | Flush |
| Mounting support | Wall mounted |
| Fixing mode | By screw M3.5 |
| Fixing center | 60.3 mm |
| Embedding depth | 35 mm |
| Rated current | 10 A at 250 V AC, inductive 10 A at 250 V AC, resistive |
| [Ue] rated operational voltage | 250 V AC |
| Network frequency | 50 Hz |
| Contacts material | Brass and phosphor bronze |
| Connections – terminals | Pillar terminal |
| Terminal identifier | N L1 COM L2 |
| Tightening torque | 0.4 N.m |
| Clamping connection capacity | <= 1.5 mm² |
| Width | 86 mm |
| Height | 86 mm |
| standards | MS IEC 60669-1 SS 227 IEC 60669-1 |
|---|---|
| Ambient air temperature for operation | -5…40 °C |
| Relative humidity | 0…95 % |
| Environmental characteristic | Indoor use |
